White / Yellow LED lamp
-
- Features
-
- White / Yellow LED Tube applied to PhotoZone of cleanroom
- White / Yellow LED lamp for PhotoZone and PR room
- Cutting off the wavelength under 450nm (Emitting white color) / 500nm (Yellow color)
- Compared to the conventional yellow lamp, the White LED lamp has better visibility and accurate color discrimination
- Color temperature : White (4000K, 5000K), Yellow (2900K)
- Less eye-fatigue of workers in PhotoZone
- Patent : Patent registration completed in Korea and pending in 42 countries around the world
- Available T8 (External SMPS type) and T10 (Internal SMPS type)
- White - 450nm Cutting PhotoZone Light
- Yellow – 500nm Cutting PhotoZone Light
-
- Applications
-
- Retrofit existing Yellow lamp in Photozone
- Direct replacement available with existing Yellow LED lamp without changing SMPS
- Cleanroom light
- Photolithography Room Light

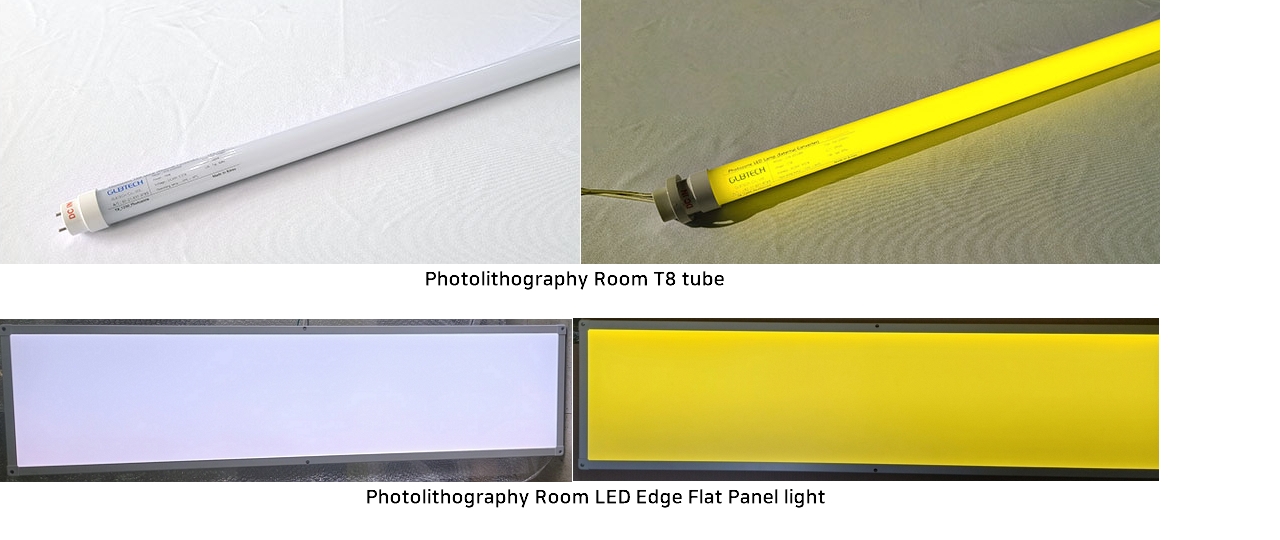

- Photozone White/Yellow T8 tube, White/Yellow LED Edge Flat Panel light
| Application | Lamp type | CCT (K) | Power (W) | Input Voltage | Cutting rate | Flux (lm) | Efficiency (lm/W) | Installation |
|---|---|---|---|---|---|---|---|---|
| Photolithography Room Light |
T8 tube | 5000K (White) | 16W | 30VDC | 450nm - typ. 99.5 | typ.1,450 lm | typ. 90 | G13 base |
| 2900K (Yellow) | 17W | 30VDC | 500nm - typ. 99.5 | typ.2,300 lm | typ. 135 | |||
| Edge Flat Panel light |
5000K (White) | 45W | 220V (60hz) | 450nm - typ. 99.5 | typ. 2,800 lm | typ. 63 | Surface Mounted Type |
|
| 2900K (Yellow) | 47W | 220V (60hz) | 500nm - typ. 99.5 | typ. 4,000 lm | typ. 83 |
